Description

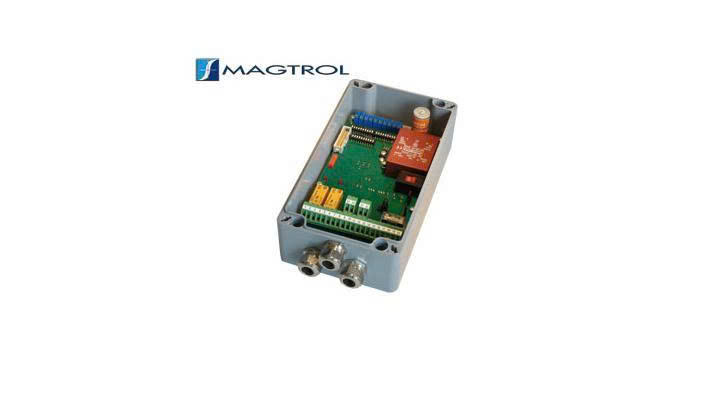

Magtrol 224-212-011-LMU 212/01, bộ giám sát tải Magtrol
Magtrol 224-212-011 – LMU 212/011 là bộ giám sát tải (Load Monitoring Unit) của hãng Magtrol, dùng để nhận tín hiệu từ load cell/strain-gauge transducer và xử lý, giám sát tín hiệu tải
Ứng dụng chính
- Đo và giám sát tải trọng từ load cell/strain gauge.
- Dùng trong máy bốc dỡ, nâng hạ và thiết bị xử lý vật liệu, đặc biệt có ứng dụng thực tế trong máy loading/unloading than.
- Giám sát quá tải: thiết bị có các mức cảnh báo/level detector và tiếp điểm relay.
- Đưa tín hiệu về PLC/DCS/SCADA thông qua ngõ ra analog.
- Có thể sử dụng trong các hệ thống cân và giám sát lực công nghiệp.
Model Magtrol
| Magtrol 224-212-011 – LMU 212/011
LOAD MONITORING UNIT /2 LEV Load monitoring unit with 2 sensor input, 2 O/P 4-20 mA and 2 O/P 0-10 V Power supply 18…32 VDC |
Magtrol 312-101-000-051
Item: 1WB65 Eddy currrent dynamometer including speed probe OS 123 Rated torque 10Nm at 5730min-1 Maximum braking power 6kW Maximum speed 30000min-1 |
| Magtrol 006249
Model: AHB-12 BRAKE, AIR COOLED, 24V Rated torque 12 Nm Max braking power 2,800 W Max speed 12,000 rpm 24 Volt Coil This unit requires 620 KPa (90 psi) @ 20 SCFM for proper cooling |
Magtrol 311-101-051-101
CALIBRATION ARM Calibration arm for WB/PB 43 (need 2 per dyno!) |
| Magtrol 005676
Model: AHB-1 BRAKE, AIR COOLED, 24V Rated torque 1.0 Nm Max braking power 1,200 W Max speed 25,000 rpm 24 Volt Coil This unit requires 620 KPa (90 psi) @ 20 SCFM for proper cooling |
Magtrol 004661
Item: HB-450-1 Hysteresis brake HB-450-1 Min. torque at rated current 450Oz.in Max. speed 8’000min-1 Power ratings continuous 160W Power ratings intermittent 670W Power supply 93.6VDC |
| Magtrol 007714
Model: HD-715-5C2-0100 DYNAMOMETER, 240 VAC, 60 PPR, SHORT Rated torque 6.20 Nm (0-5 Vdc output) New connectors Short Base Plate Max braking power 3,400 W Max speed 25,000 rpm Blower Cooled Encoder 60 PPR |
Magtrol 007297
Model: AHB-3.3 BRAKE, AIR COOLED, 24V Rated torque 3.3 Nm Max braking power 2,000 W Max speed 25,000 rpm 24 Volt Coil This unit requires 620 KPa (90 psi) @ 20 SCFM for proper cooling |
| Magtrol 007714
Model: HD-715-5C2-0100 DYNAMOMETER, 240 VAC, 60 PPR, SHORT Rated torque 6.20 Nm (0-5 Vdc output) New connectors Short Base Plate Max braking power 3,400 W Max speed 25,000 rpm Blower Cooled Encoder 60 PPR |
Magtrol 954-21-11-0126
Model: MIC-5-0039 10H7/10H7 COUPLING, 10mm – 10mm 20K RPM |
| Magtrol 88M370-0500
Model: CABLE ASSY,M12-4F/CINCH 2M,5m BRAKE CABLE, M12-4F TO CINCH-2M *Note: Cable set for use with an existing DSP7000 series controller” |
Magtrol 007941
Model: DSP7011 CONTROLLER, 1-CHANNEL (GPIB, USB, 1 I/O) High-Speed Programmable Dynamometer Controller, Single Channel, USB Interface, GPIB Interface, Single I/O Card |
| Magtrol 88M372-0500
Model: CABLE ASSY, D-SUB 15F/14P AMPHENOL, 5m SIGNAL CABLE, D-SUB 15F TO MICRO-RIBBON-14 *Note: Cable set for use with an existing DSP7000 series controller” |
Magtrol 957-18-25-0301
EXCITATION CABLE L=5m FOR WB 32 + DSP701X” |
| Magtrol 843-102-000-011
CTS 102 COGGING TEST SYSTEM 200mNm Cogging Test System Measuring range: 0 – 200 mNm Accuracy: 0.05% of rated torque Speed: 1 – 10 rpm Shaft height: 100 mm Mounted on PT-25 base, length 600 mm With USB interface Incl. Control and Data Acquisition Software (LabVIEW exe)” |
Magtrol 88M368-0500
CABLE, D-SUB 15M/D-SUB 15F, 5.0m, SHIELDED SIGNAL CABLE, D-SUB 15M TO D-SUB 15F, SPECIAL |
| Magtrol 424-102-000-211
TS 102/211 0.2Nm 5000PPR Torque Sensor with smooth shaft Analog and USB outputs Rated Torque 0.2 Nm, Accuracy <0.05% Max Measurable Torque 0.4 Nm Max speed 1000 rpm With 5000 Bits Encoder (A, B, Z) Incl. 3 m. analog and 2 m. USB cables” |
Magtrol 317-101-900-021
Model: 1WB32 EDDY CURRENT SYSTEM, WITH FIXTURE, 0.4 Nm 1WB32 High Speed Eddy Current Dynamometer Rated torque 0.4 Nm at 11,950 rpm Power rating: 500 W Maximum speed 80,000 rpm With integrated Torque-Speed measurement With integrated dyno excitation suppy Mounted on 765mm T-Slots base plate With AMF-1 motor fixture with protection guard including closing contact As per drawing 317-101-000V011″ |
| Magtrol 843-105-000-011
CTS 105 COGGING TEST SYSTEM 2Nm Cogging Test System Measuring range: 0 – 2Nm Accuracy: 0.05% of rated torque Speed: 1 – 10RPM Shaft height: 180mm Mounted on PT-25 base, length 800 mm With USB interface Incl. control and data acquisition software (LabVIEW exe)” |
Magtrol 424-105-000-211
TS 105/211 2Nm 5000PPR Torque Sensor with smooth shaft Analog and USB outputs Rated Torque 2 Nm, Accuracy <0.05% Max Measurable Torque 4 Nm Max speed 1000 rpm With 5000 Bits Encoder (A, B, Z) Incl. 3 m. analog and 2 m. USB cables” |
